Marshall DSL100H Repair.. Was Dead and Smoking…

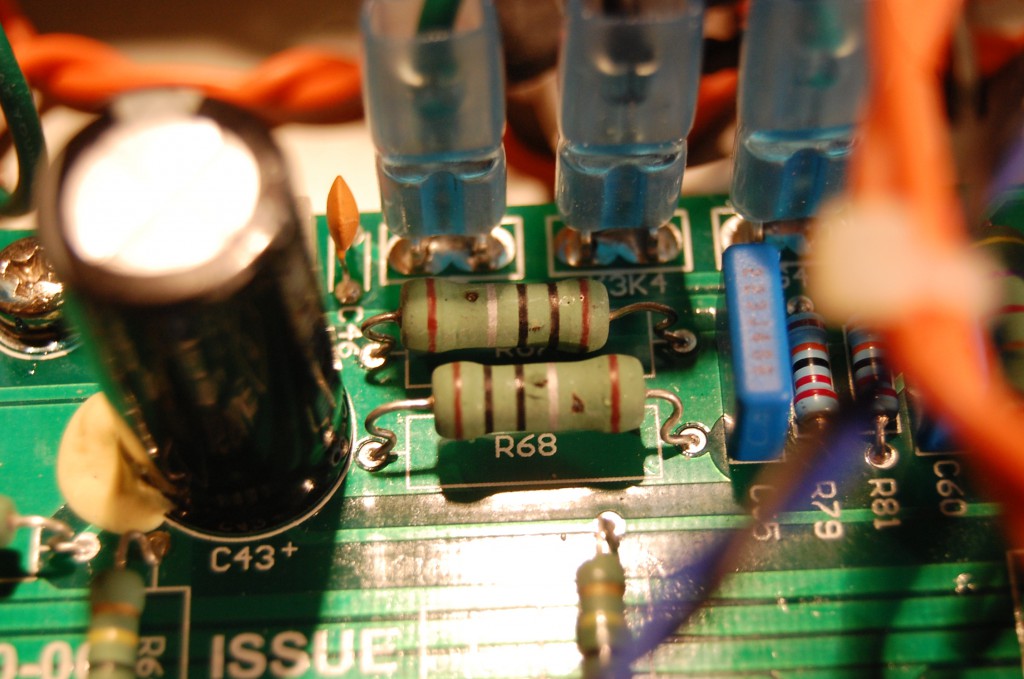

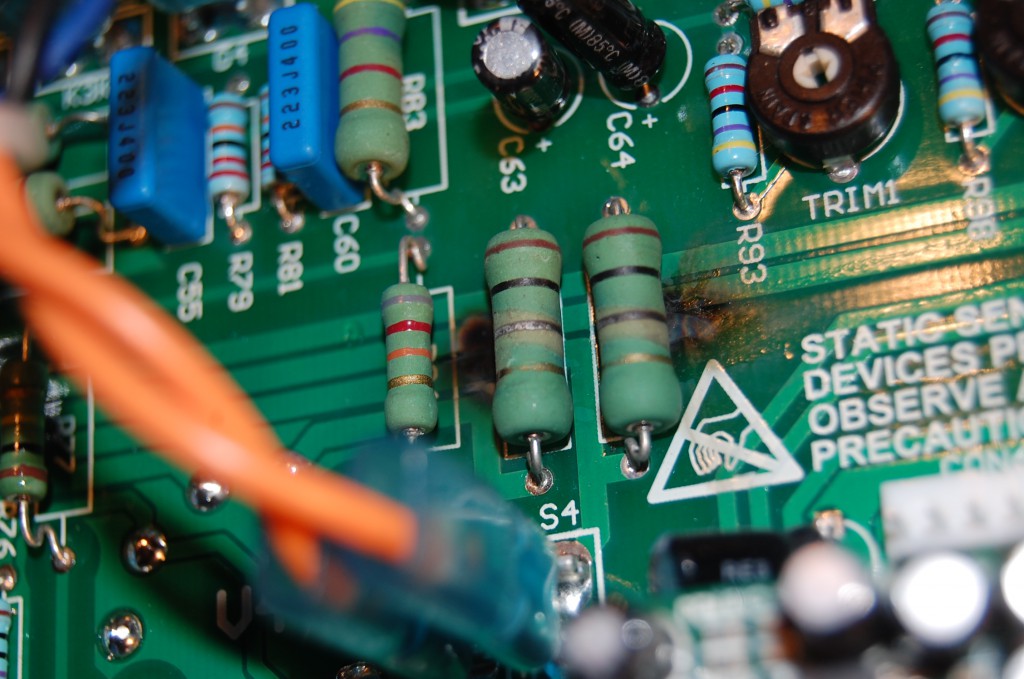

DSL100H made in Vietnam and now not working after smoke seen from cab...DSL100H made in Vietnam and now not working after smoke seen from cab…DSC_9474One of these had shorted between the HT and filament..One of these had shorted between the HT and filament..On the bench now where did the smoke come from?On the bench now where did the smoke come from?I think I can see it!I think I can see it!Fried 100 Ohm resistors... on the filament supplyFried 100 Ohm resistors… on the filament supplyReplaced on top of the board to save costReplaced on top of the board to save costOpen Circuit 1 Ohm ResistorsOpen Circuit 1 Ohm ResistorsReplaced withut taking the board off to save customer cost.. (my time)Replaced withut taking the board off to save customer cost.. (my time)New matched pair on the left balanced up with the original 2 again to save costs and she was singing again!New matched pair on the left balanced up with the original 2 again to save costs and she was singing again! Came in not working after smoking…
